Ideal for promoting environmental contributions
Now available in a range of eye-catching designs
Enables integrated installation with various systems

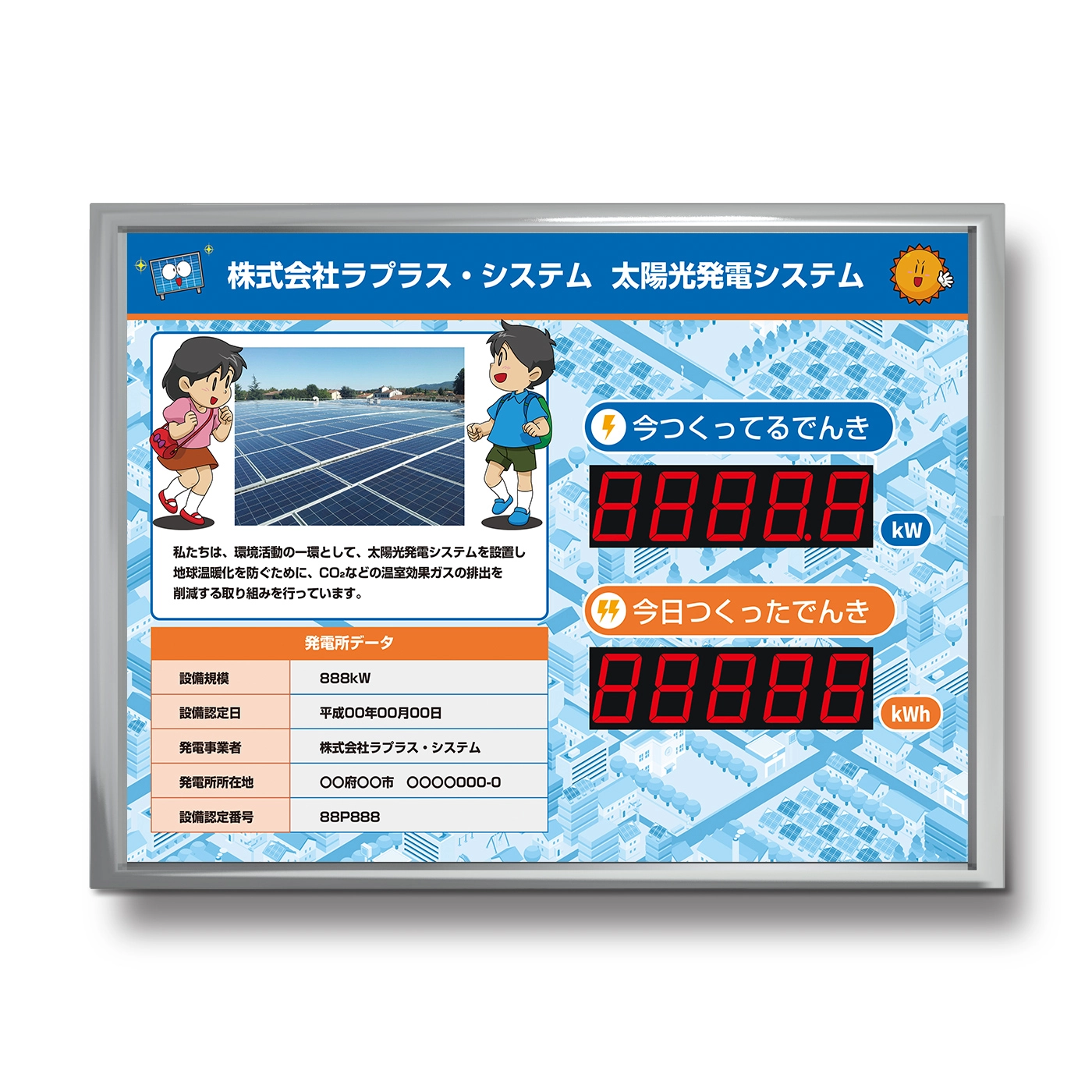

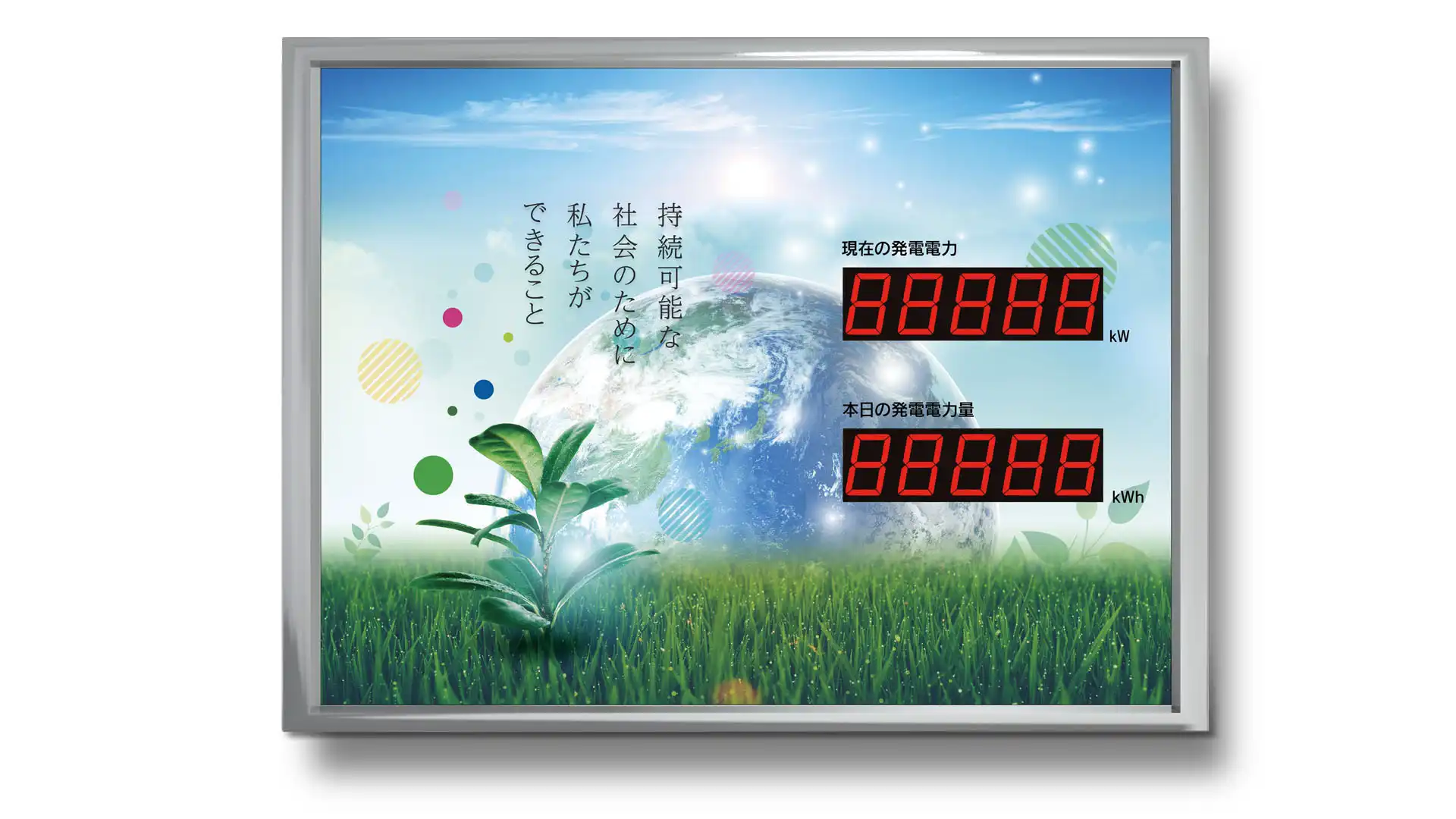

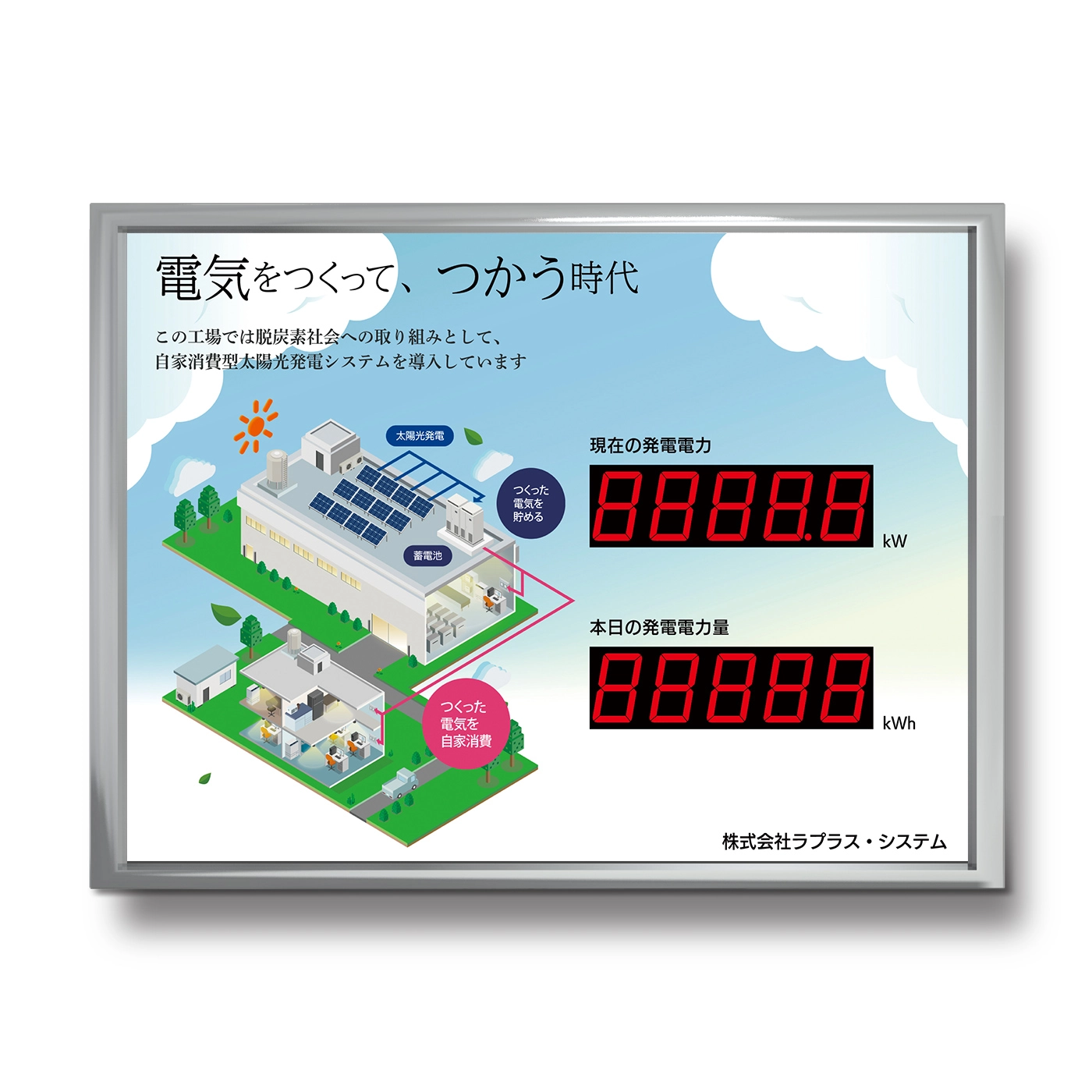

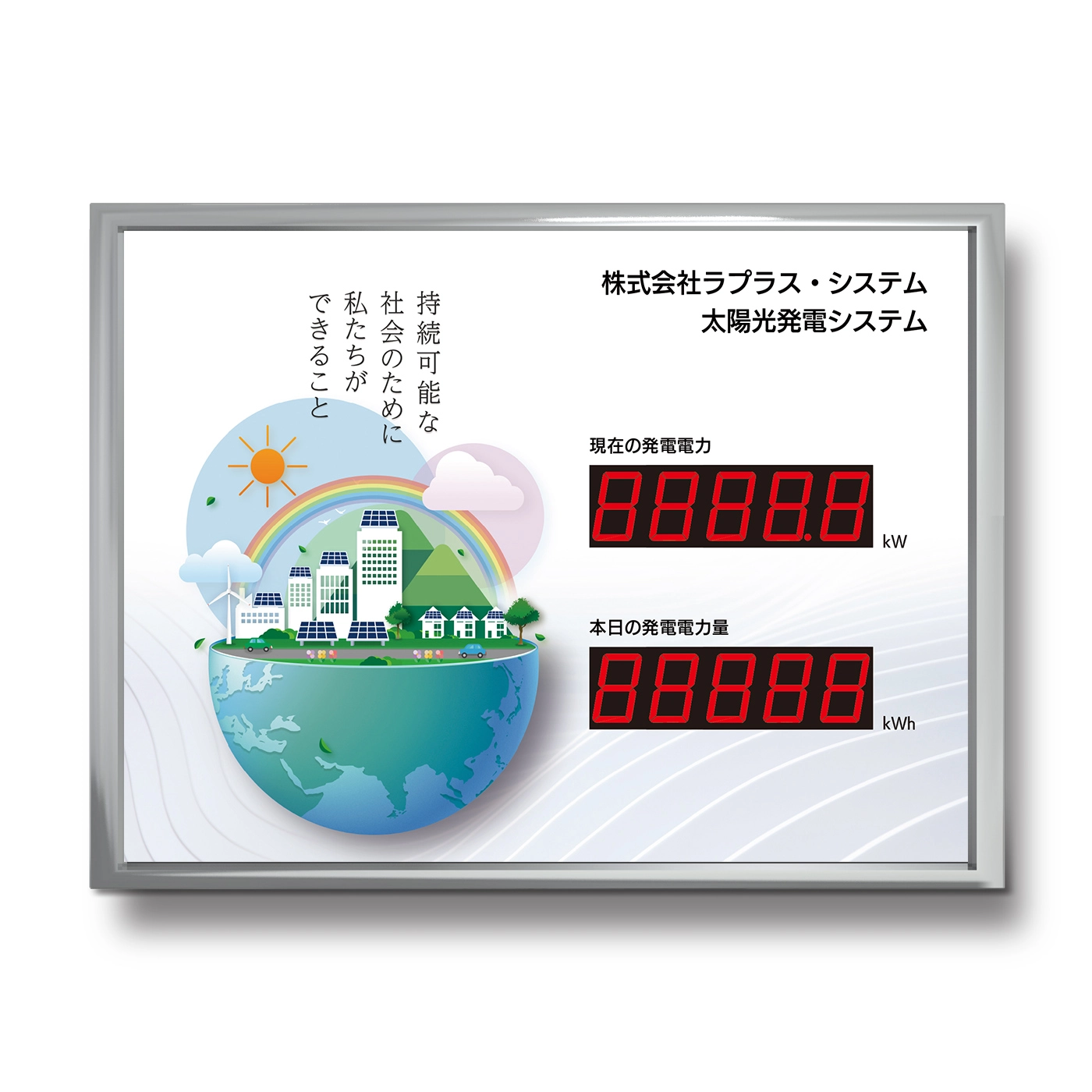

A sophisticated design that overturns the image of traditional display panels.
The casing and frame are slim and sleek.
Available in both wall-mounted and freestanding models, making it suitable for various installation locations.
Water-resistant design for outdoor use.
Bright, high-luminance LEDs ensure excellent visibility.
Display time settings are available.

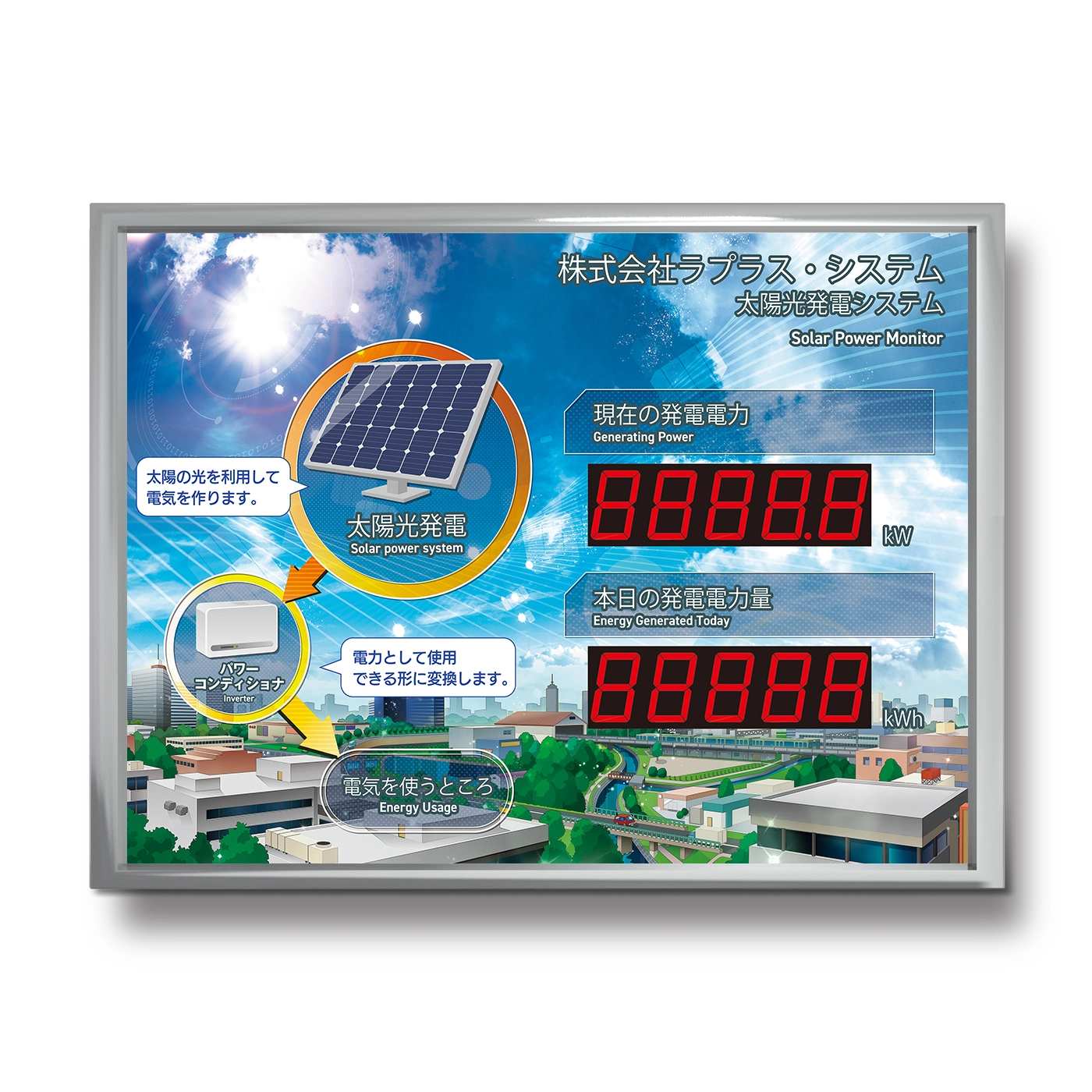

Customizable original designs perfect for promoting environmental contributions.
By combining sophisticated design with LED displays, we achieve effective eco-PR.
Customization is possible by using original characters and illustrations.
Additionally, changes in panel size, LED size, and display position are also available.

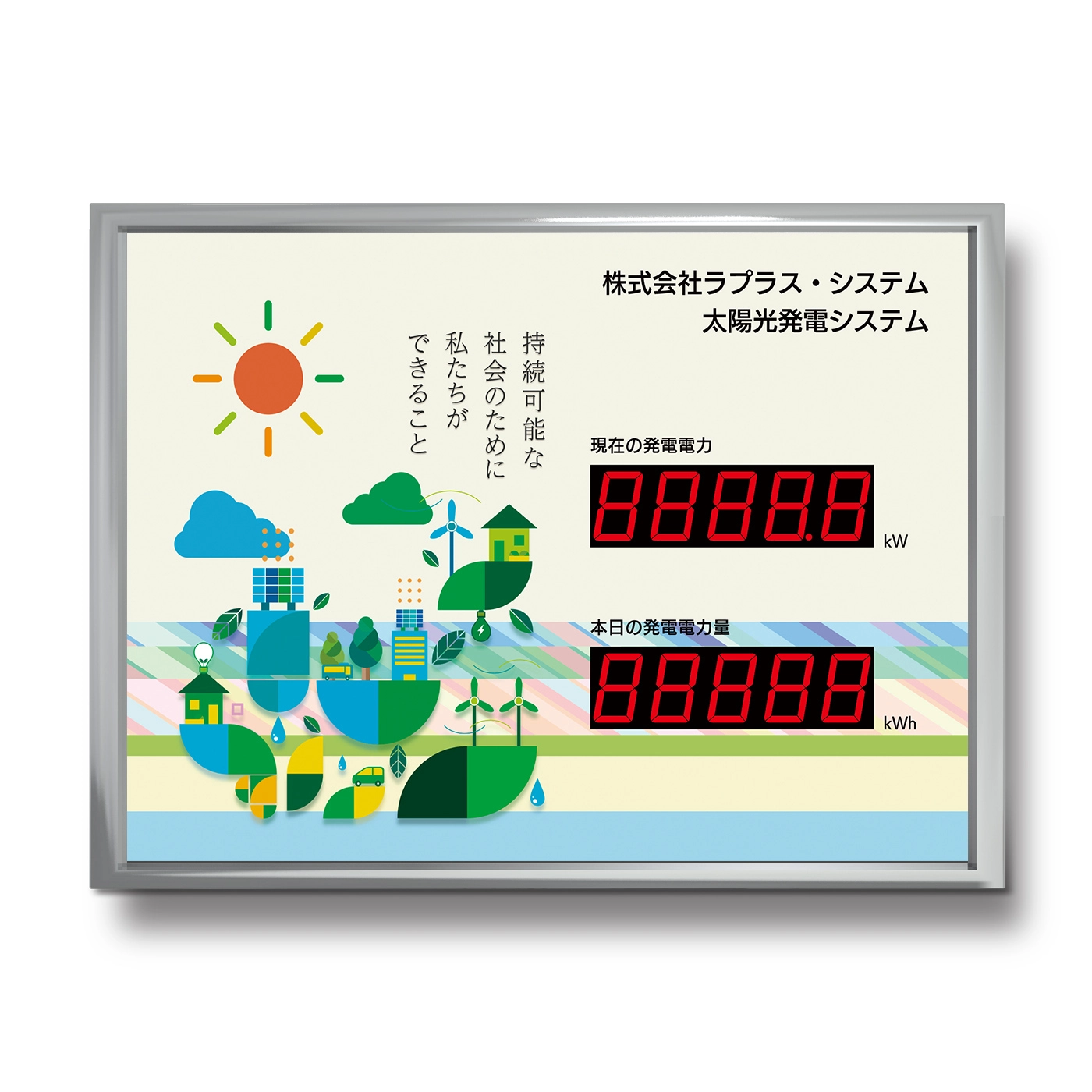

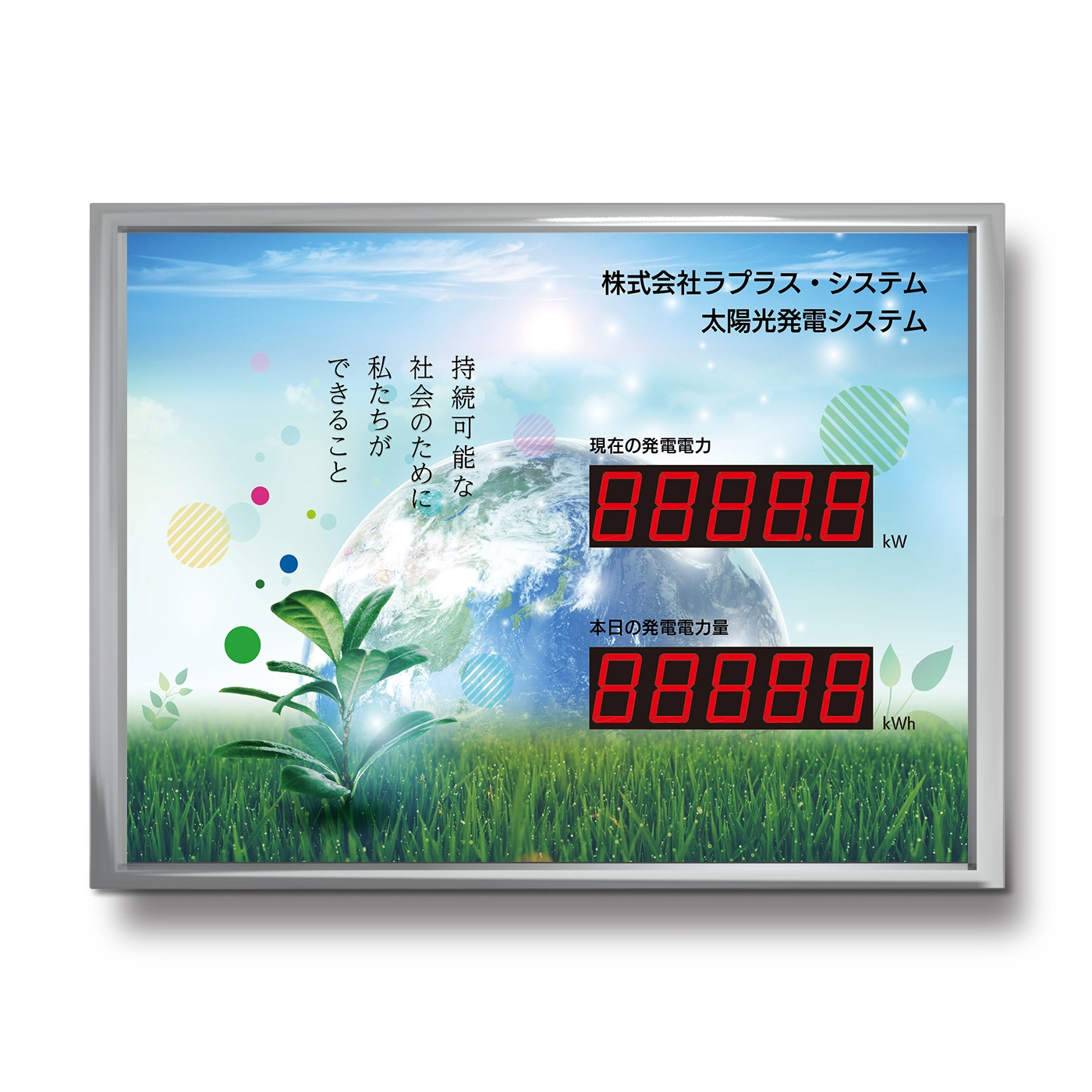

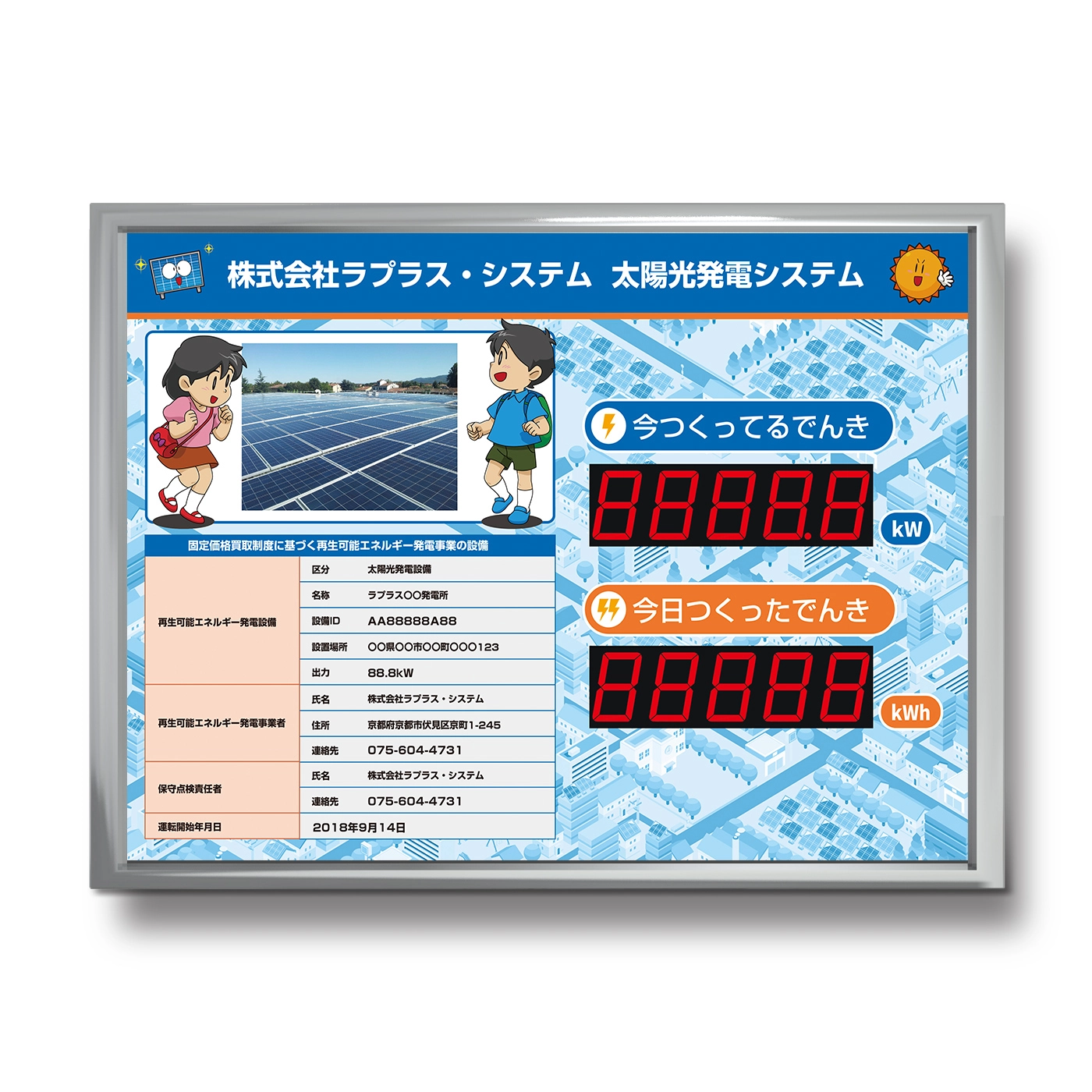

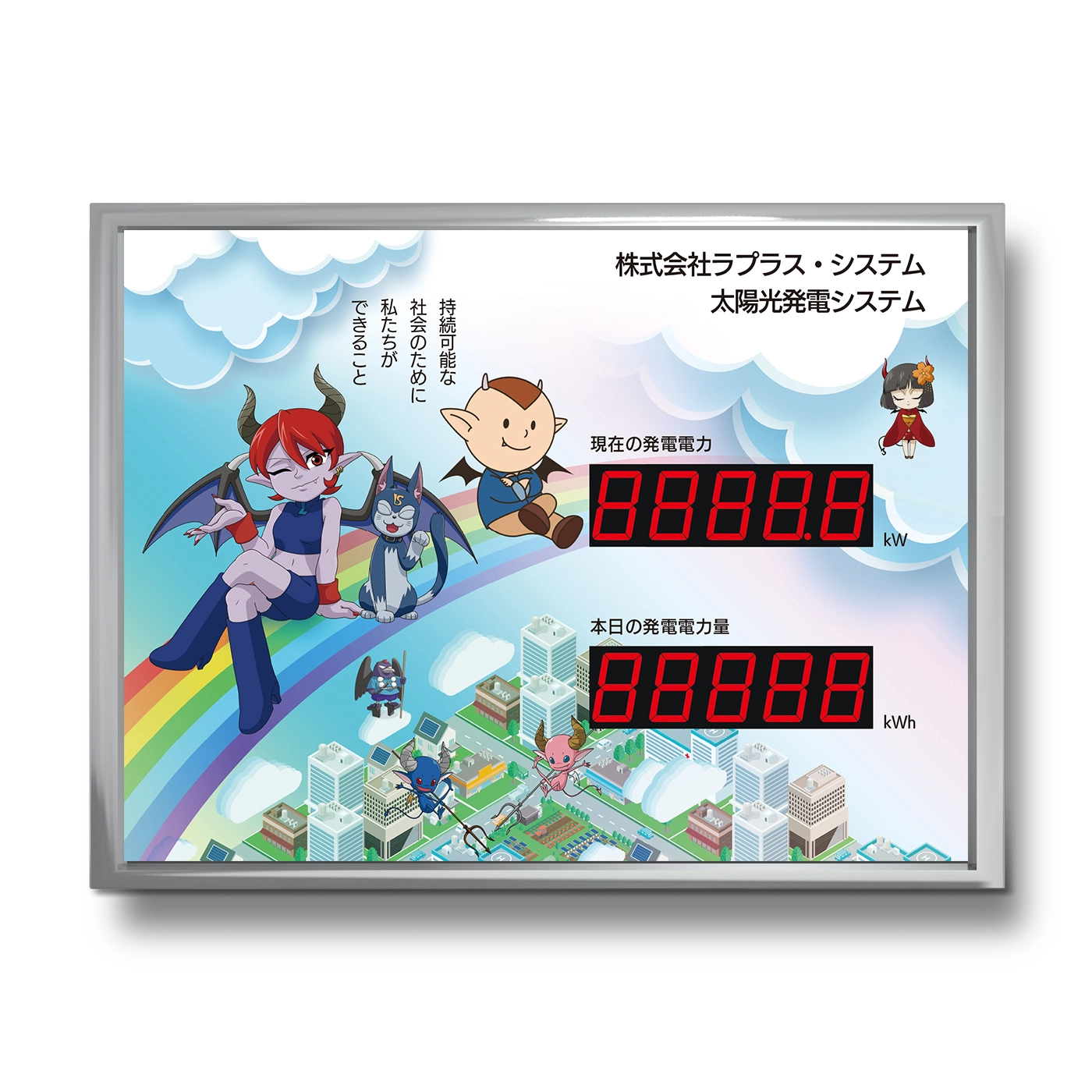

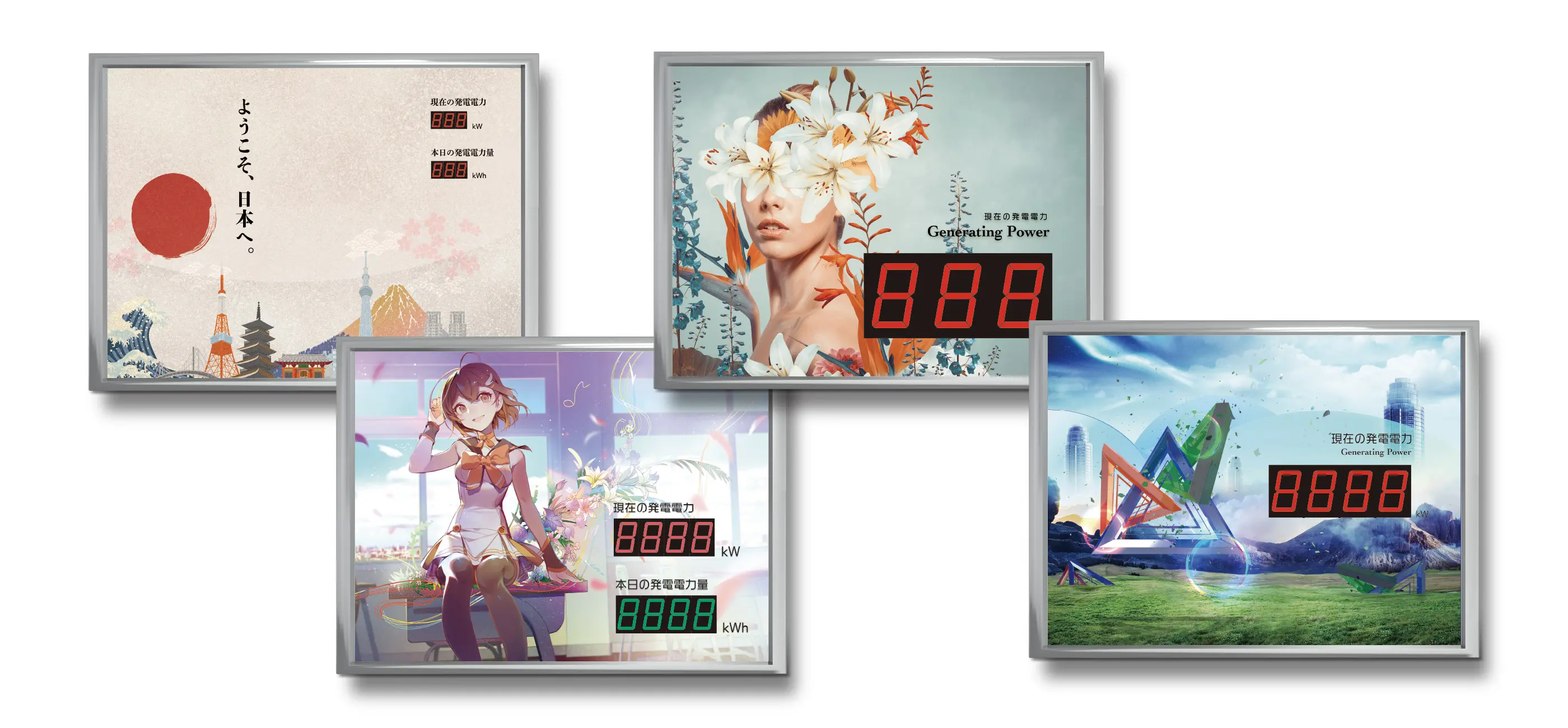

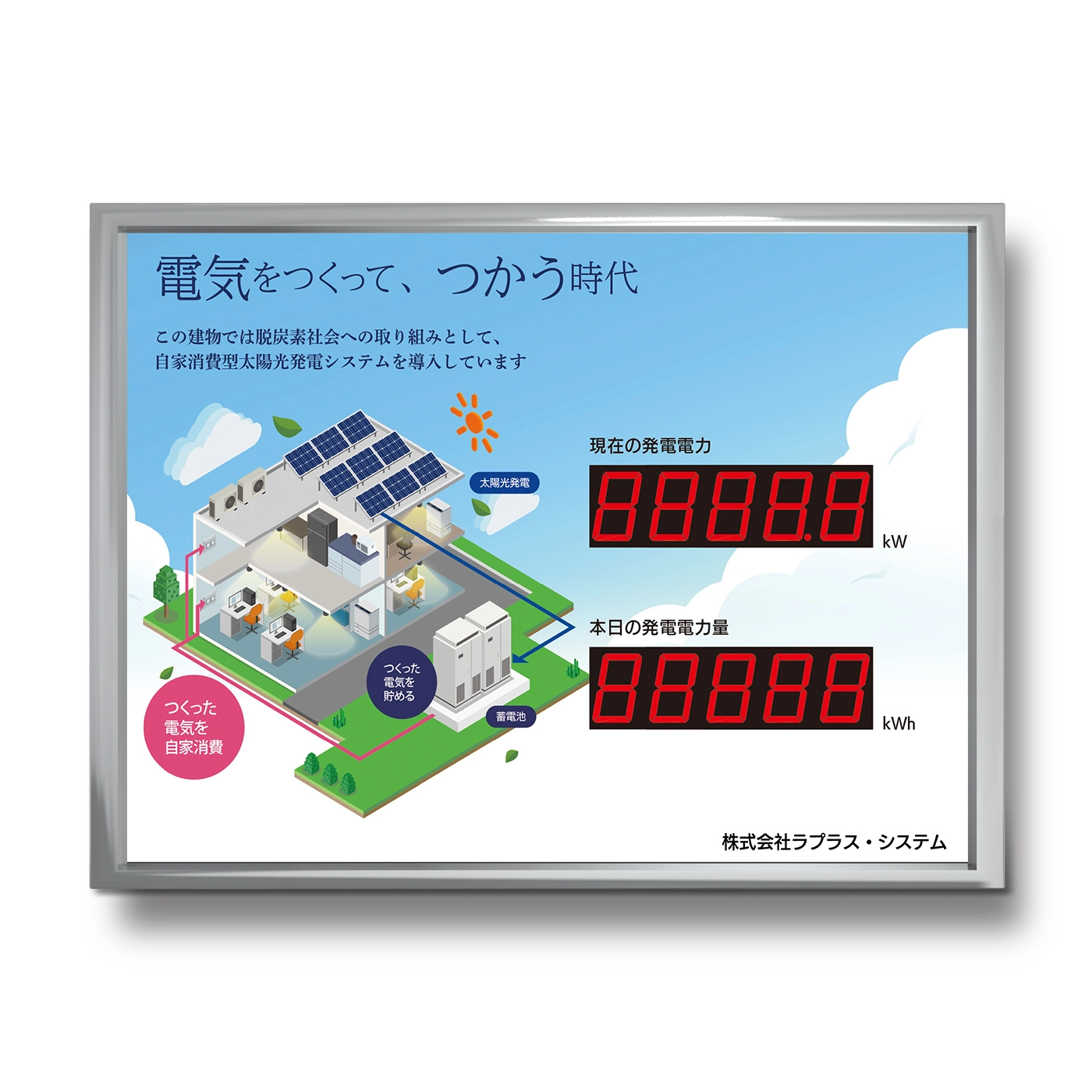

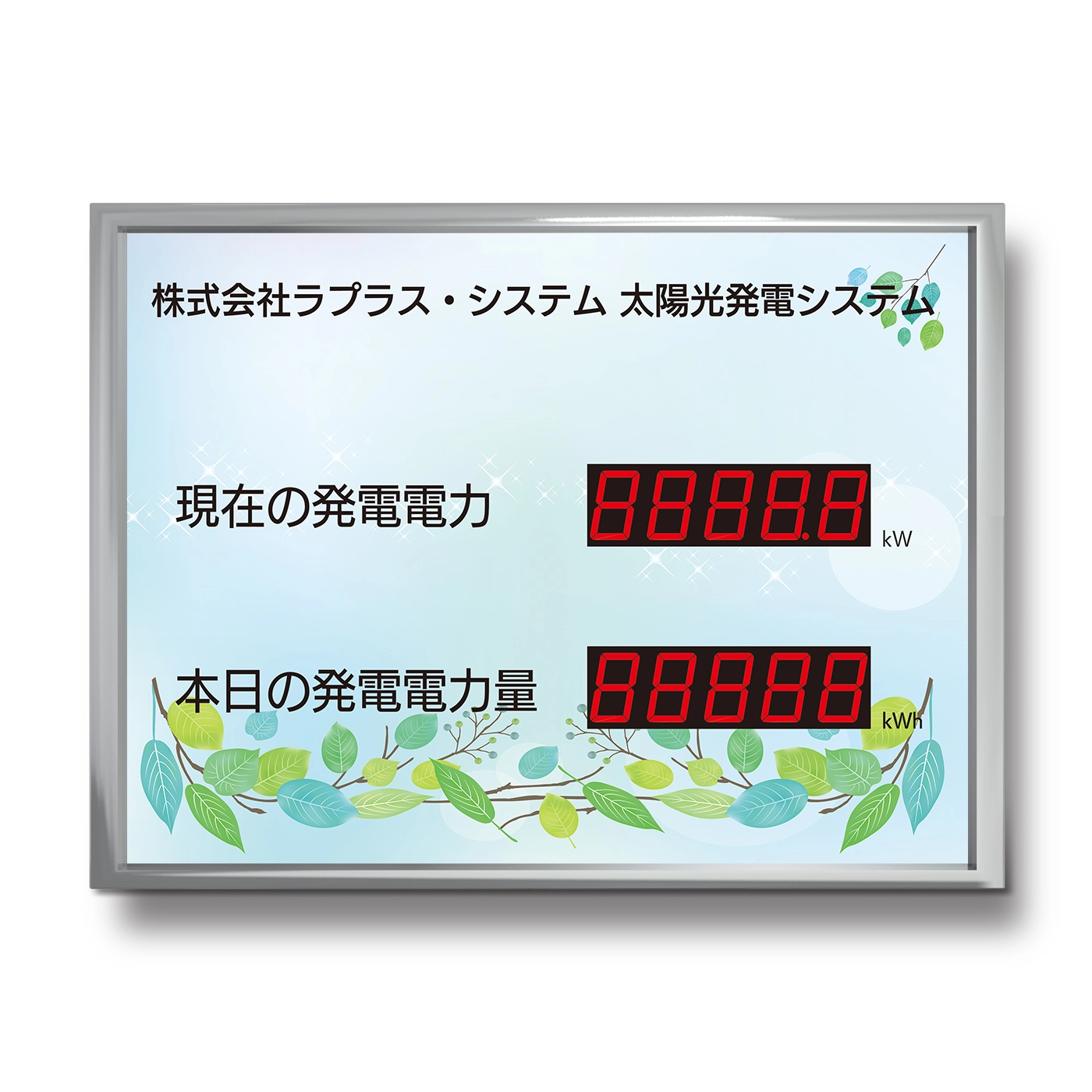

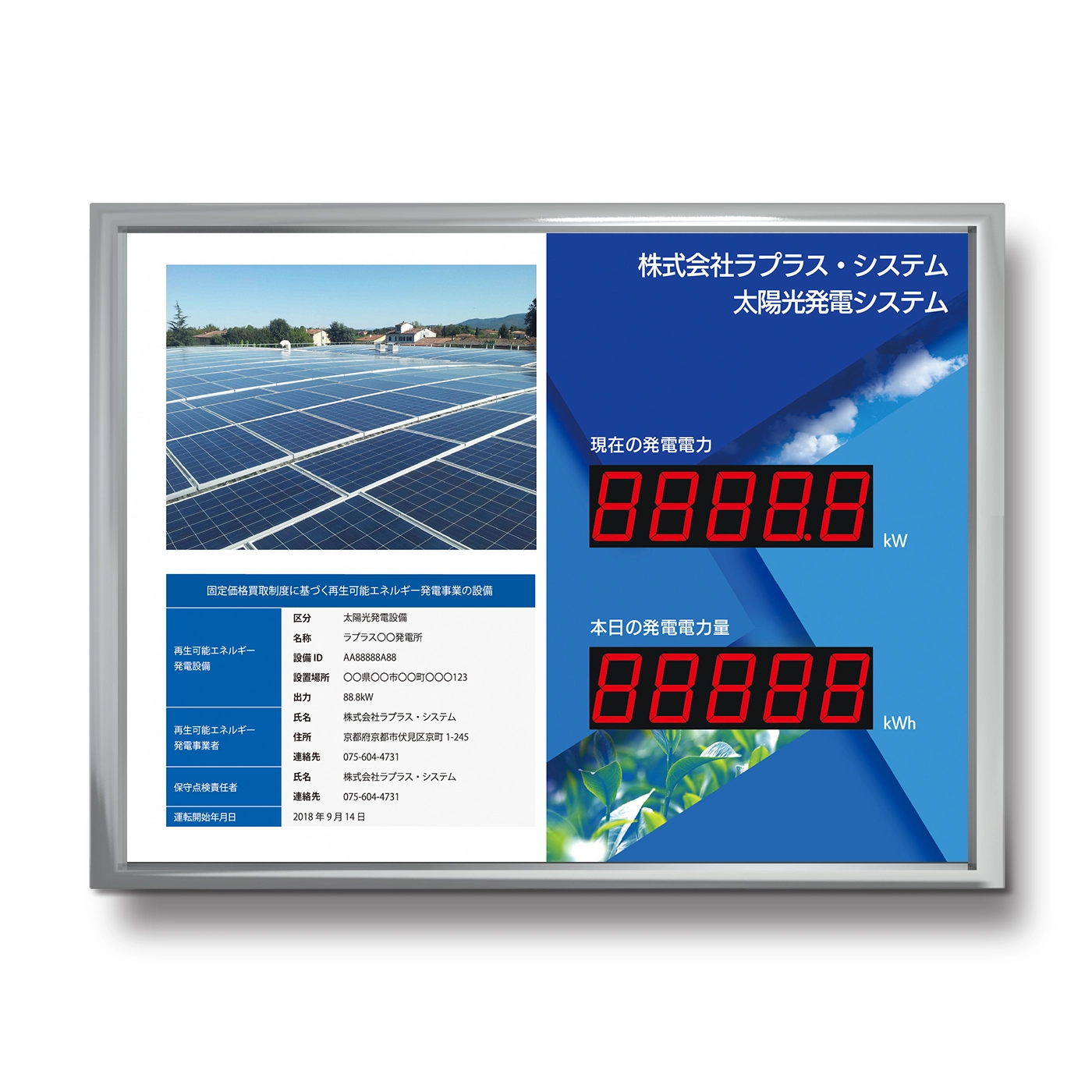

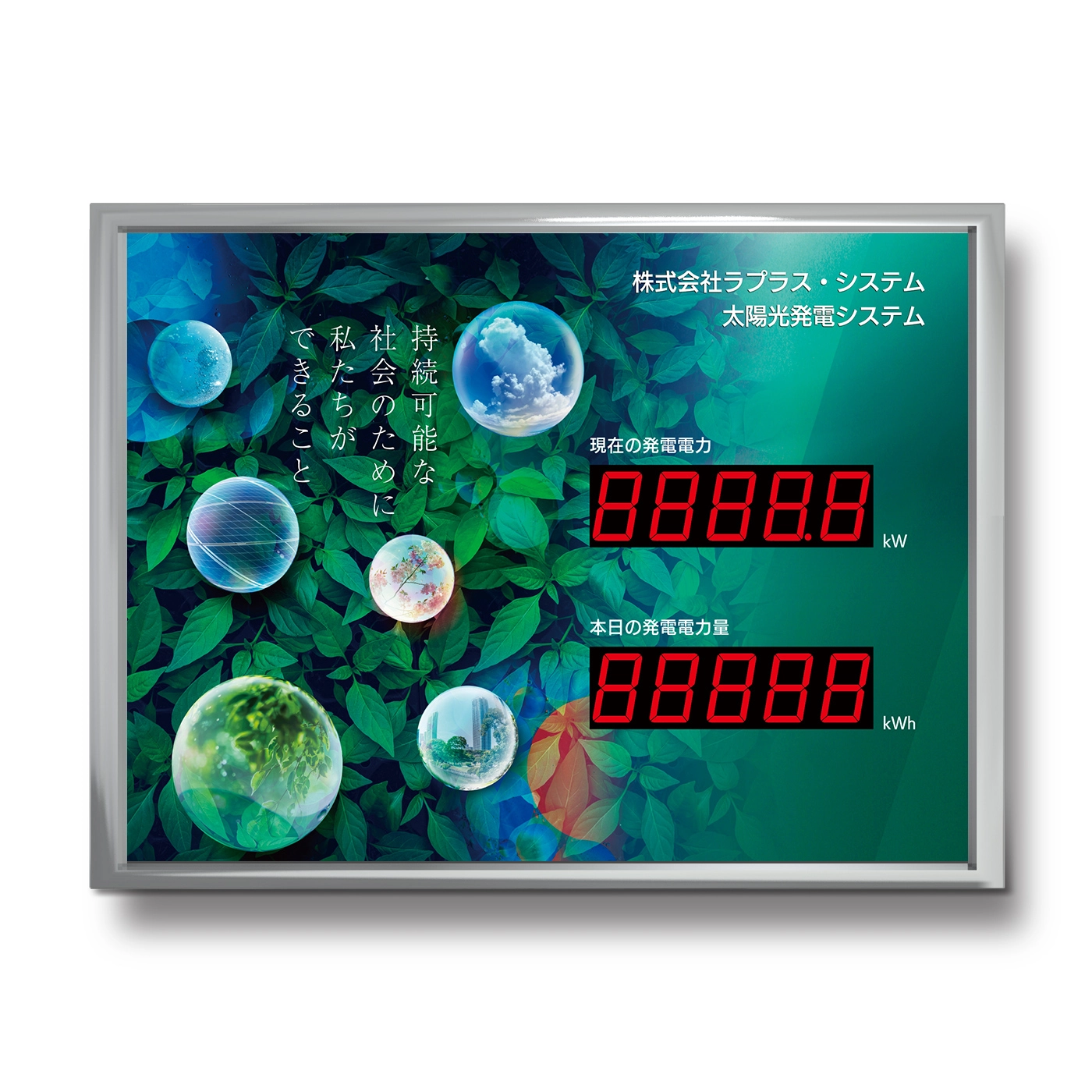

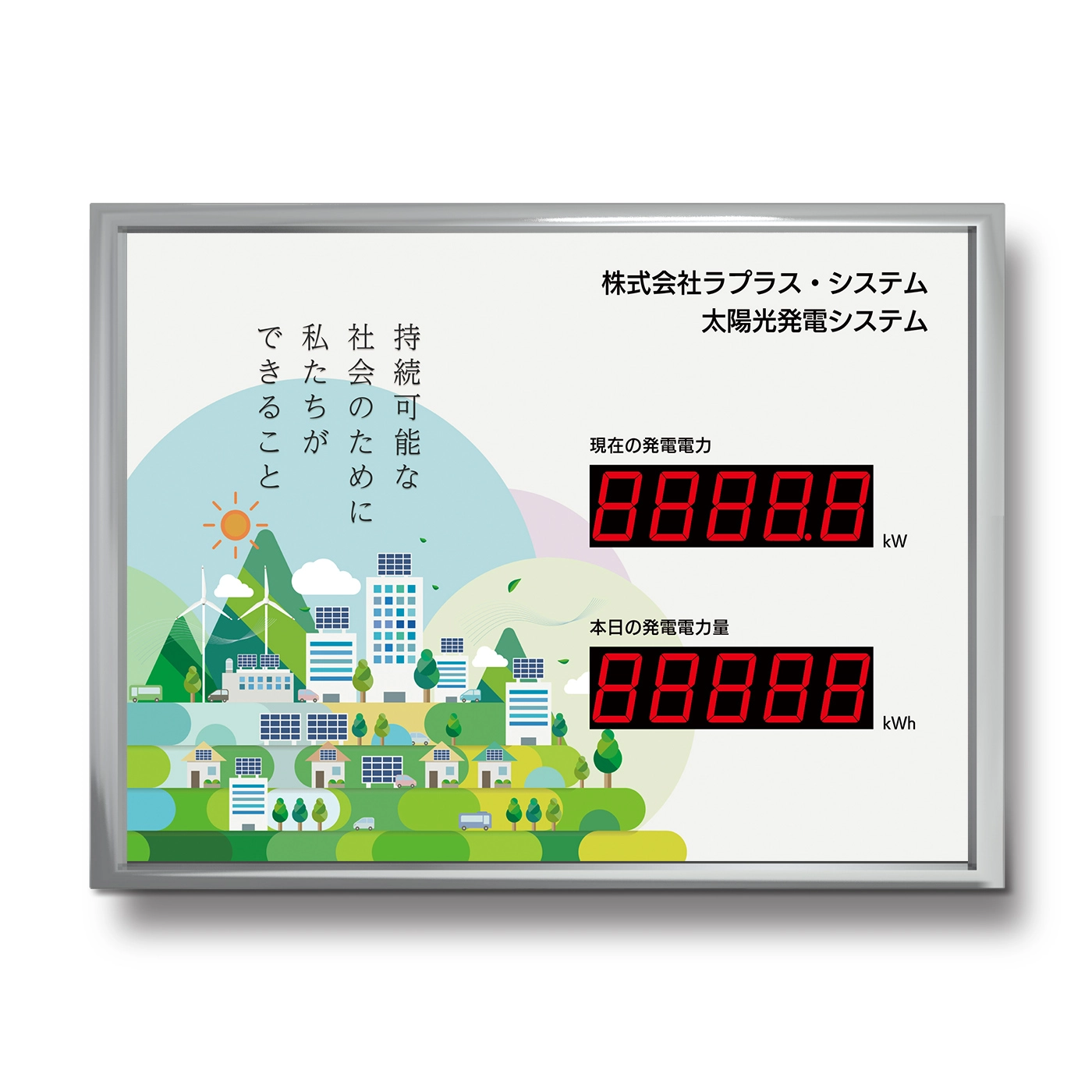

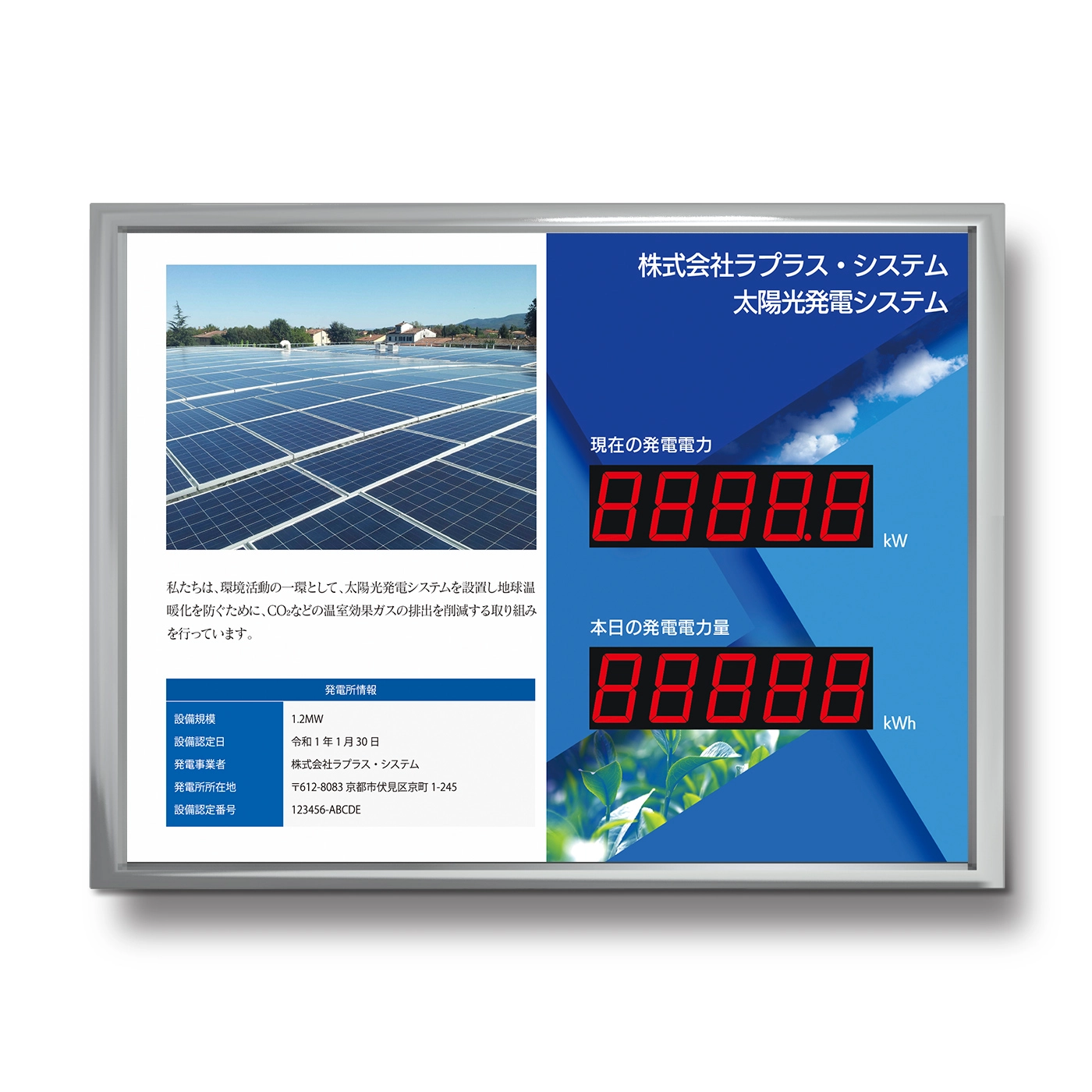

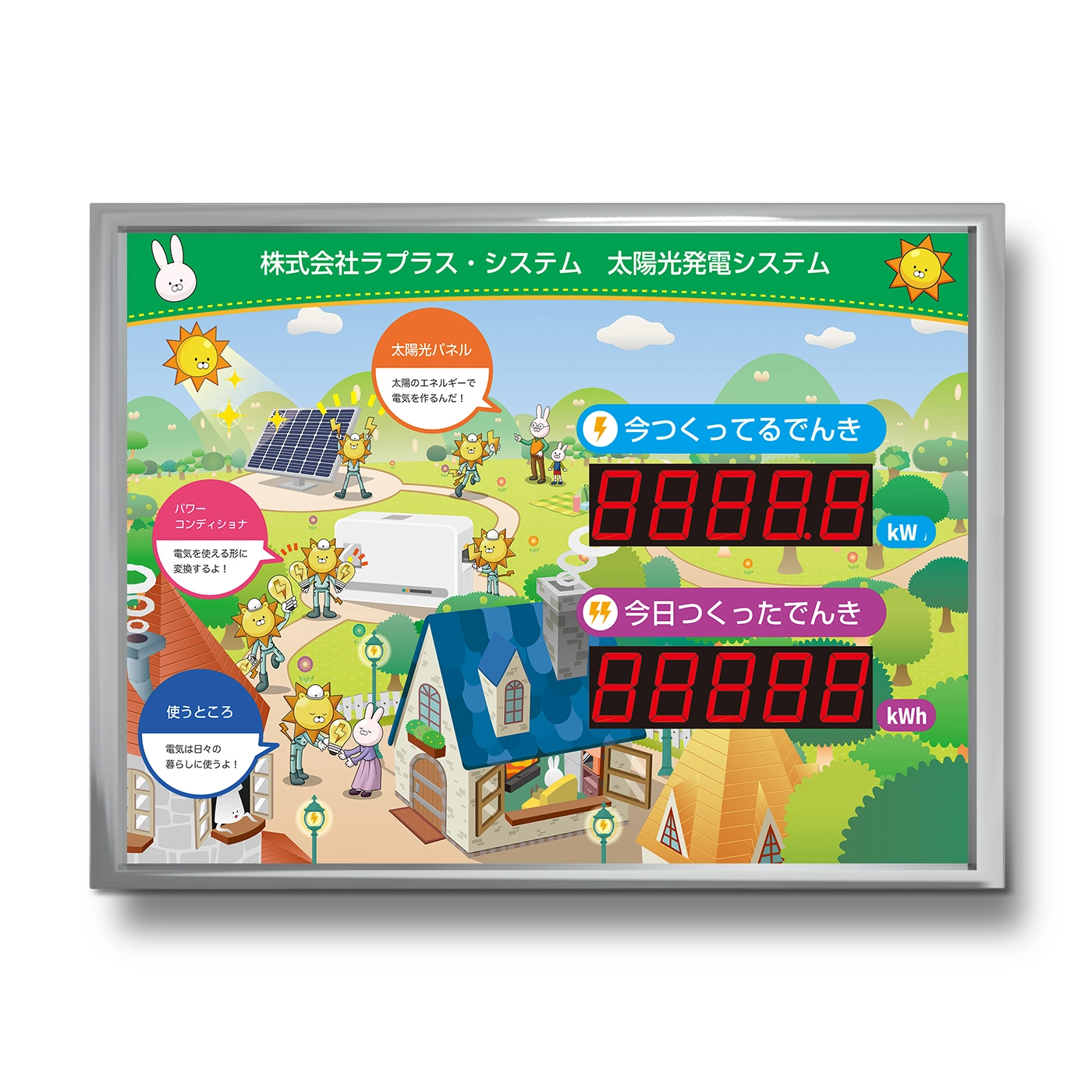

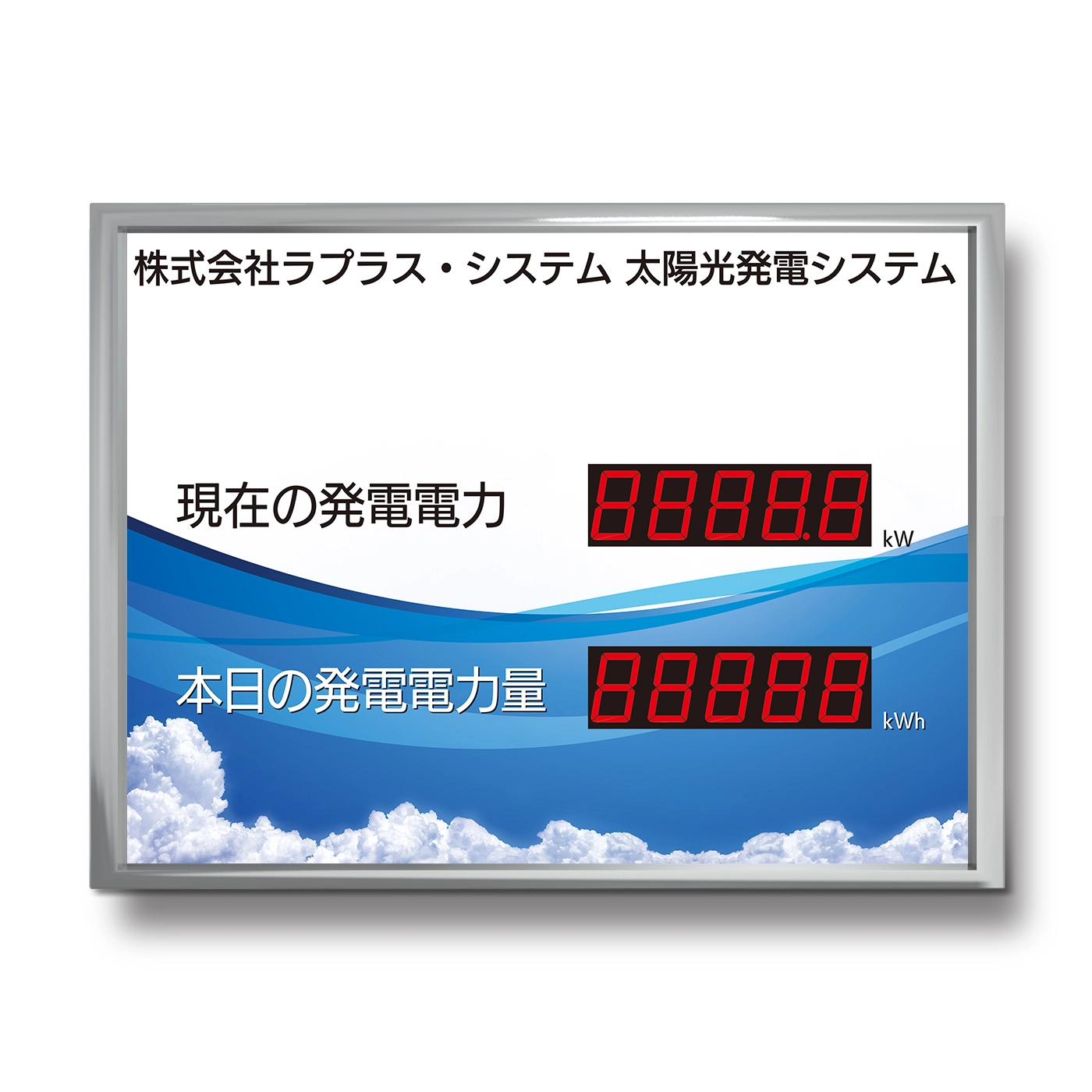

* For more details, please contact us.Customized Design Examples

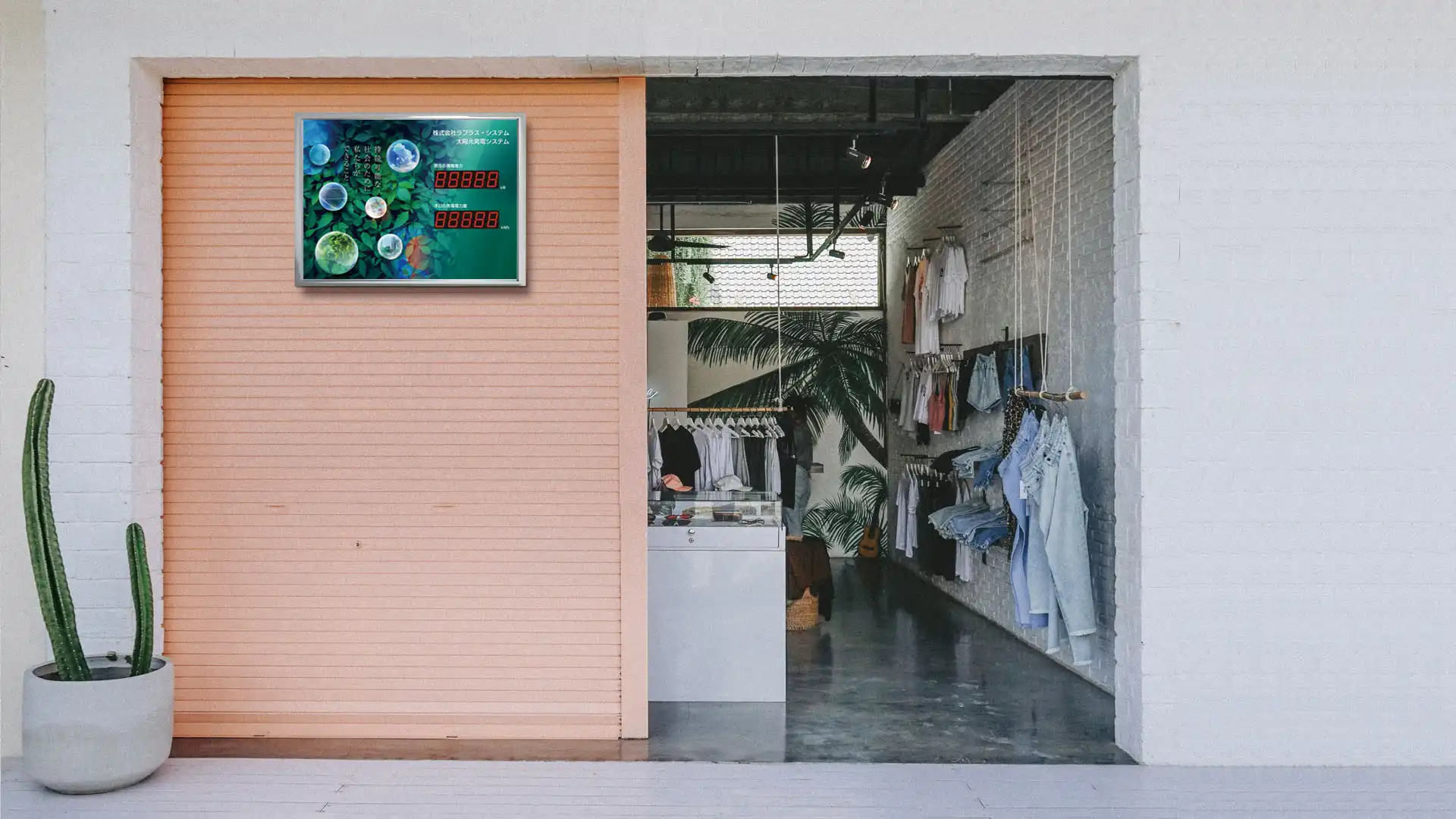

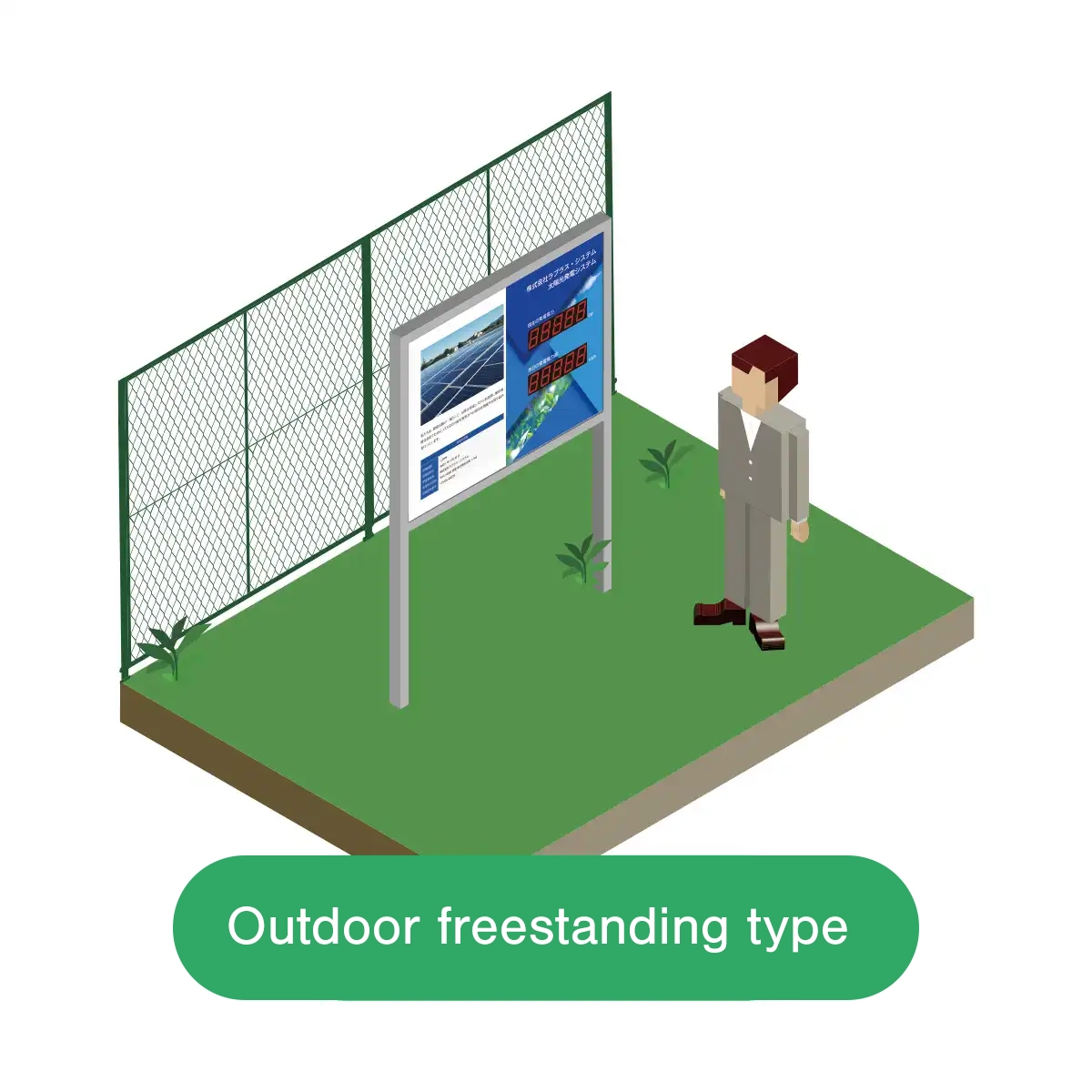

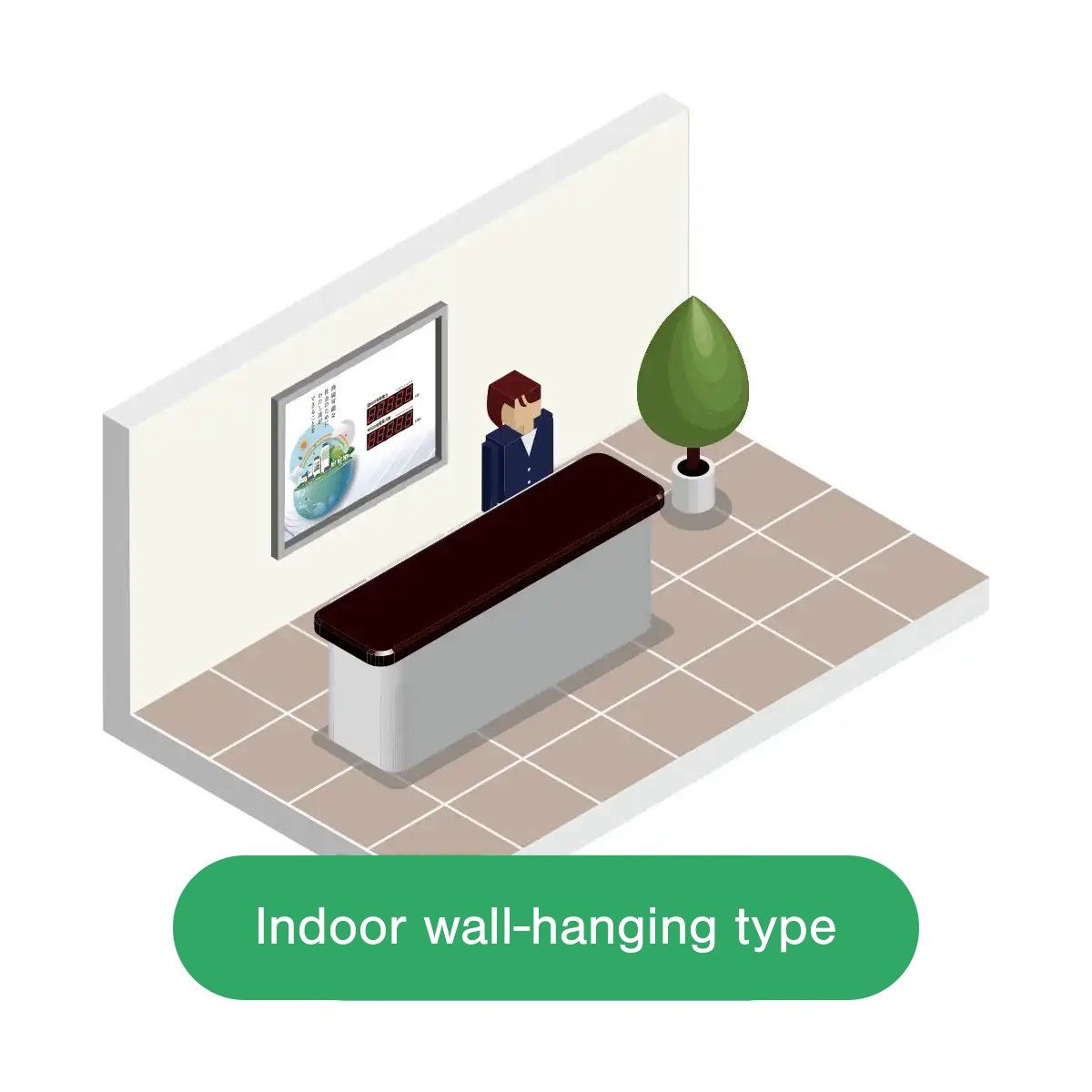

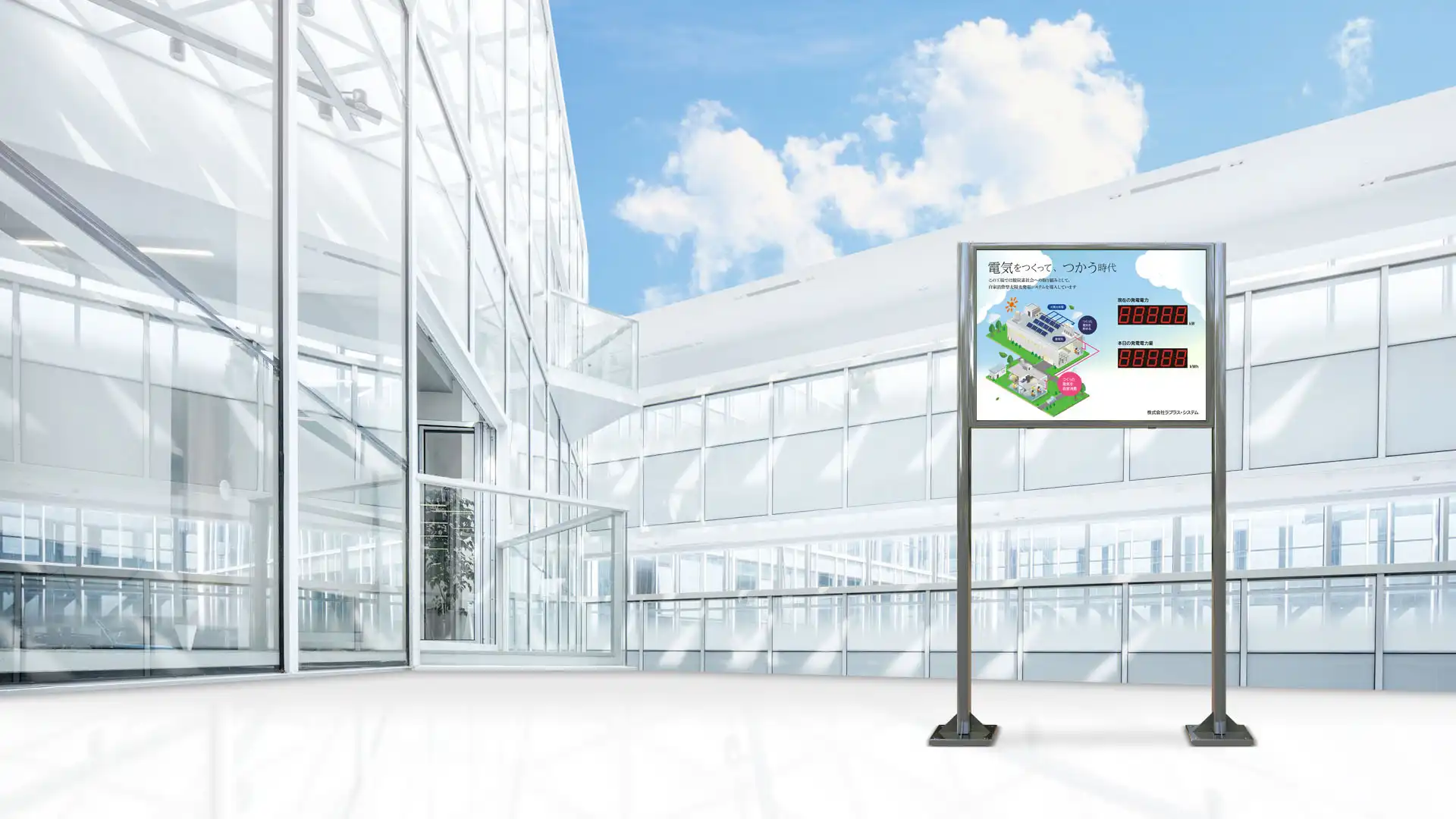

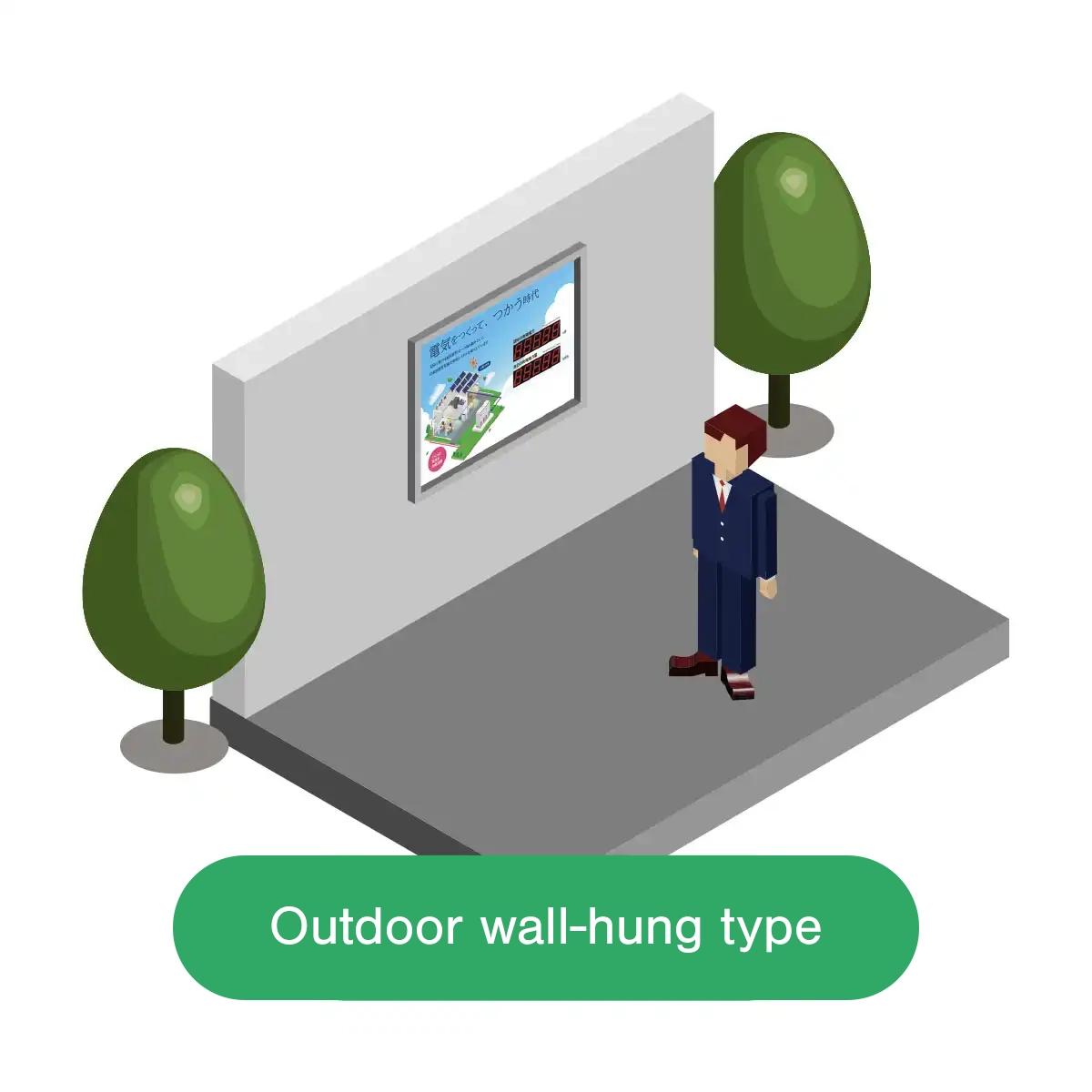

Suitable for both indoor and outdoor installations, with both wall-mounted and freestanding options available for outdoor use.
You can freely choose according to the installation location.

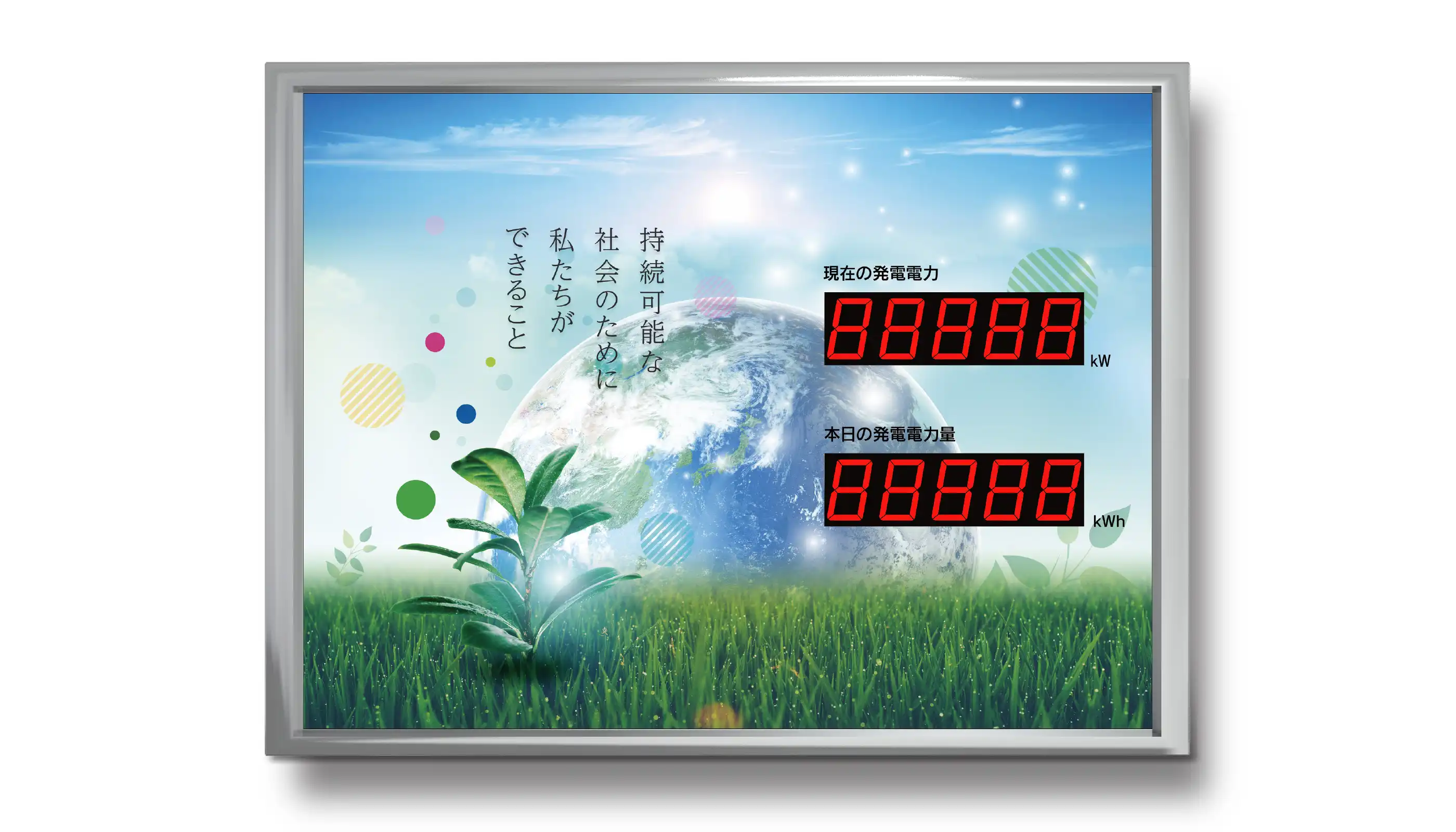

The bright, high-intensity LEDs ensure excellent visibility.
Display time settings are available.

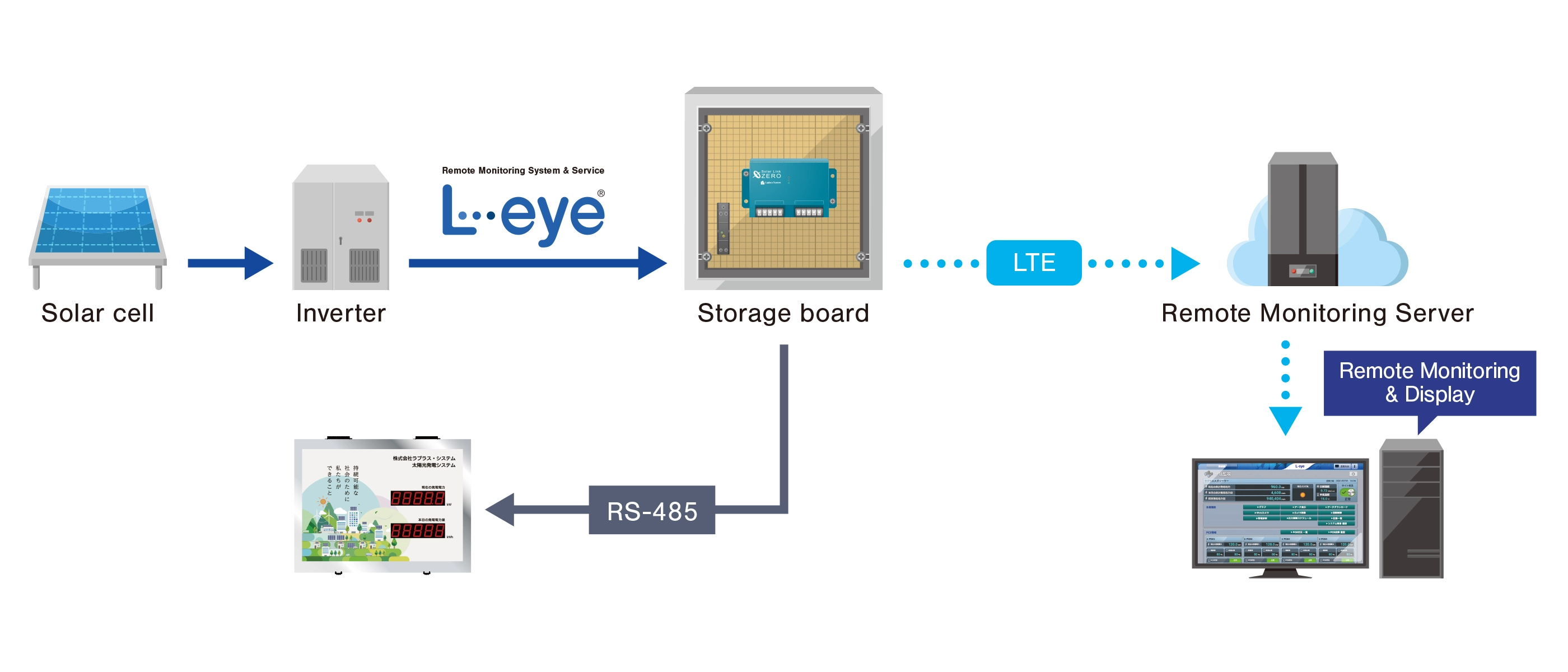

By adding to systems such as the Remote Monitoring System & Service L・eye, you can promote environmental contributions.
Standardization makes integrated installation possible, shortening the installation process.
Standard Specifications
Outdoor (Wall-Mounted/Freestanding)
| Display Unit | Character Height: 56.4mm, 40.6mm (when 4 items are selected) Emitting Color: Red 7-segment high-brightness LED |
|---|---|
| Illustration | Inkjet Printing |
| Acrylic Filter | t3.0 Brown Smoke (for printing and display units) |
| Controller | 32bit CPU |
| Signal Input | RS-485 |
| Communication Protocol | Laplace System proprietary |
| Dimensions | Main Body Enclosure: W800 x H600 x D70mm Including Freestanding Pole: W880 x H1600 x D80mm (excluding base protrusions) |
| Case Material | SUS304 t1.5 Hairline Finish (Outdoor Waterproof Specification) |
| Freestanding Pole | SUS304 t3 Square Pipe 40x80mm Hairline Finish |
| Freestanding Pole Base | SUS304 t12 260x260mm (with φ30x60 wiring hole at the bottom) |
| Weight | Main Body: 20kg or less Freestanding Pole (2 pieces): Approximately 35kg |
| Power Supply | AC100V 50/60Hz |
| Power Consumption | 3-digit 2 items: 10W or less 4-digit 2 items: 15W or less 5-digit 2 items: 20W or less |
Indoor (Wall-Mounted)
| Display Unit | Character Height: 56.4mm, 40.6mm (when 4 items are selected) Emitting Color: Red 7-segment high-brightness LED |
|---|---|
| Illustration | Inkjet Printing |
| Acrylic Filter | t3.0 Brown Smoke (for printing and display units) |
| Controller | 32bit CPU |
| Signal Input | RS-485 |
| Communication Protocol | Laplace System proprietary |
| Dimensions | W800xH600xD50mm |
| Case Material | Main Unit: SECC t1.2, Frame: Aluminum t1.5 |
| Weight | 14kg or less |
| Power Supply | AC100V 50/60Hz |
| Power Consumption | 3-digit 2 items: 10W or less 4-digit 2 items: 15W or less 5-digit 2 items: 20W or less |
