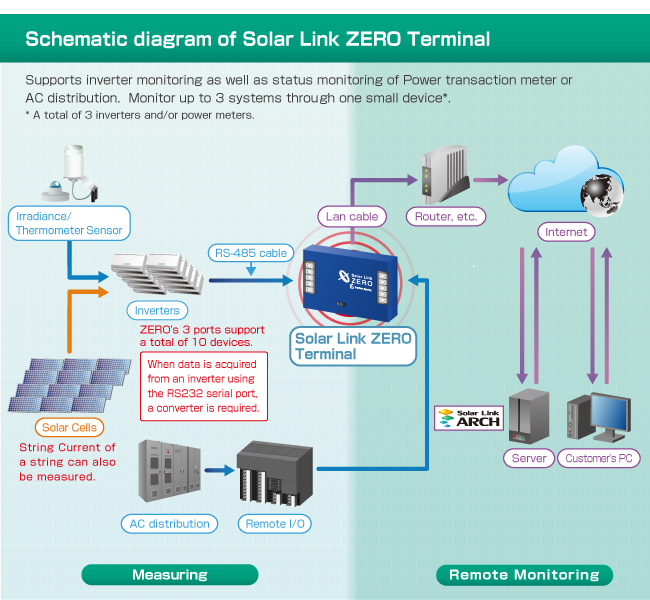

Supports inverter monitoring as well as status monitoring of Power transaction meter or AC distribution.
Monitor up to 3 systems through one small device*.
Remote monitoring is made possible by sending monitoring data to a hosting server (contracted with us) over the Internet.
We've implemented optimal functions in monitoring terminals for remote monitoring of mega-solar systems by supporting up to 10 inverters and improving durability.
* A total of 3 inverters and/or power meters.
| ZERO Terminal Unit Specifications | Model | SLZ-T-II |
|---|---|---|
| Processor | Freescale IMX257 | |
| System Clock | 400MHz (CPU core clock) | |
| Memory | SDRAM:128MB, FLASH:128MB(NAND) | |
| Ethernet | 10BASE-T/100BASE-TX | |
| Serial Port | RS-485 I/O port×2 , RS-232C I/O port×1 | |
| Image Output | None | |
| External Dimensions | W162.0×H97.0×D35.0 mm | |
| Power | AC 100V (dedicated AC adapter used) | |
| Power Consumption | 5W (during standard use) | |
| Temperature Range of Use | -10 to 60°C (without condensation) | |
| Mass | Approx 250g | |
| OS | Linux 2.6 | |
| Contents | Contents | ZERO Terminal Unit , AC Adapter |
| Data Management | Save Location | Laplace System Hosting Server |
|---|---|---|
| Data Format | CSV format | |
| Measuring | Number Of Inverters Connected | Maximum of 10 |
| Measurement Target |
|
|
| Screens | Types of display screens * When using Solar Link ARCH |
|
| Browsing | Through Local Lan | "Solar Link ARCH Intra-Version" monitoring solution can be used in an internal intranet environment. * Not compatible with remote monitoring and presentation system "Solar Link ARCH" |
| Over Internet | Remote monitoring and presentation system Solar Link ARCH |
ASP service is short for "Application Service Provider" service and it is a mechanism that allows us to provide the services you desire through a web browser over the internet. Operation status and other information of an inverter acquired by the Solar Link ZERO Terminal installed in a solar energy facility is accumulated on a hosting server (contracted with us) through the internet. This information can be displayed through a web browser on a PC or other device connected to the internet as a "Remote Monitoring Screen."
Example Screen
Top Screen
Graph Screen
